Defining Events

Triggers are an important part of any workflow orchestrator. Blackbird allows custom events to be defined as triggers. These events usually correspond to webhooks in applications but they can also be callback URLs or they work using polling.

Webhooks

Just like with actions, we use the WebhookList attribute to point Blackbirds towards our webhooks. You can split your webhooks into multiple files by providing multiple classes implementing the WebhookList. The Webhook attribute has to be added to each webhook handling method. Similarly to actions, they also take a name and description.

[WebhookList]
public class WebhookList : BaseInvocable
{

  // Just like with articles, we can define the display name and the description.
  [Webhook("On article published", typeof(ArticlePublishedHandler), Description = "On article published")]
  public async Task<WebhookResponse<ArticlePublishedResponse>> ArticlePublishedHandler(WebhookRequest webhookRequest,
    [WebhookParameter][Display("New status")][DataSource(typeof(ItemStatusDataHandler))] string? newStatus) // We can give an (optional, dynamic) parameter to webhooks as well
  {
    // Webhook handling methods usually start with deserializing the WebhookRequest
    var data = JsonConvert.DeserializeObject<ArticlePayloadTemplate<PublishEvent>>(webhookRequest.Body.ToString());
    if (data is null) { throw new InvalidCastException(nameof(webhookRequest.Body)); }

    // Return an instance of WebhookResponse
    return new WebhookResponse<ArticlePublishedResponse>
    {
      HttpResponseMessage = null,
      ReceivedWebhookRequestType = WebhookRequestType.Default,
      Result = new ArticlePublishedResponse
      {
        // Implement
      }
    };
  }
}

Some external systems can request additional data, for example, credentials, URL to send the event payload, etc., before sending the event payload. Therefore, we allow you to control the response to the system and if a flight needs to be started with specific credentials.

The Blackbird platform transfers all request parameters to the WebhookRequest object. This includes the HTTP method, additional headers, etc. You can use this to decide how to handle this request.

In the WebhookResponse class that you return, you can signal to Blackbird if this incoming request should trigger a bird or not. If you don’t want to trigger a bird set ReceivedWebhookRequestType to WebhookRequestType.Preflight.

You can also control what message will be send back to the calling service by providing a HttpResponseMessage. If null is provided then Blackbird sends a 204 no content response by default.

All the properties passed to the Result class implementation will be available in the bird editor. All Display attributes are possible here as well.

💡 Note: The name of your webhook method cannot be changed, Blackbird would interpret it as a deleted and newly created event.

Asynchronous webhook handling

By default, Blackbird invokes the webhook method while handling the incoming HTTP request. This is useful when the calling application needs a response calculated from the request, such as a webhook-verification challenge.

For high-volume webhooks, implement the marker interface IAsyncWebhookHandler on the class decorated with [WebhookList]. In this mode, Blackbird immediately acknowledges every incoming webhook with HTTP 202 Accepted, places it on a queue, and processes it afterwards to start the applicable Flights. This prevents a burst of webhook calls from being held up by application code running in the HTTP request path.

Queues are scoped to a webhook subscription, not to an individual Bird. A single subscription may serve multiple Birds, so events for those Birds are processed through the same subscription queue.

The webhook method and its response model are still where you deserialize the payload and produce the values exposed to the Bird. Its HttpResponseMessage is not used to answer the original sender in asynchronous mode: the sender has already received 202 Accepted. Use this mode only when the provider does not require a synchronous challenge or another custom response.

[WebhookList("Async Invocation Mode")]
public class AsyncInvocationModeWebhooks : BaseInvocable, IAsyncWebhookHandler
{
    public AsyncInvocationModeWebhooks(InvocationContext invocationContext)
        : base(invocationContext)
    {
    }

    [Webhook(
        "On async event, no handshake",
        typeof(AsyncModeHandler),
        Description = "Receives the webhook asynchronously through the subscription queue.")]
    public Task<WebhookResponse<TestResponse>> OnAsyncEvent(WebhookRequest request)
    {
        // This code runs after Blackbird has acknowledged and queued the webhook.
        return Task.FromResult(new WebhookResponse<TestResponse>
        {
            Result = new TestResponse
            {
                TestString = "async-event",
                TestDate = DateTime.Now.Date.AddHours(12),
            }
        });
    }
}

Handshake invocation mode

Some webhook providers require Blackbird to prove ownership of the endpoint before they activate a subscription. If that handshake requires a custom HTTP response, implement IWebhookHandshakeHandler on the [WebhookList] class. This interface gives the webhook list a synchronous path for responding to the handshake request:

public interface IWebhookHandshakeHandler
{
    Task<HttpResponseMessage?> HandleHandshakeAsync(WebhookRequest request);
}

While the subscription is pending, Blackbird passes the handshake request to HandleHandshakeAsync. Return the exact HttpResponseMessage required by the provider—such as one that echoes a challenge header—to complete the handshake. Once the subscription is active, subsequent webhook requests are acknowledged with HTTP 202 Accepted, queued, and processed asynchronously, just as with IAsyncWebhookHandler.

Return a non-null response when the request is a handshake challenge, null when it is not a challenge, and throw an exception when handling the request fails. Take care not to return null for an unhandled challenge: Blackbird treats it as a regular event and calls the [Webhook] method with a request that it may not be able to process.

The following example completes a handshake by echoing X-Test-Challenge. Requests without that header are normal events after activation and are routed through the subscription queue. As with asynchronous webhook handling, the HttpResponseMessage returned by the [Webhook] method does not form the response to the external sender after the subscription is active.

[WebhookList("Handshake Invocation Mode")]
public class HandshakeInvocationModeWebhooks : BaseInvocable, IWebhookHandshakeHandler
{
    private const string ChallengeHeader = "X-Test-Challenge";

    public HandshakeInvocationModeWebhooks(InvocationContext invocationContext)
        : base(invocationContext)
    {
    }

    public Task<HttpResponseMessage?> HandleHandshakeAsync(WebhookRequest request)
    {
        if (request.Headers == null)
            return Task.FromResult<HttpResponseMessage?>(null);

        var header = request.Headers.FirstOrDefault(x =>
            string.Equals(x.Key, ChallengeHeader, StringComparison.OrdinalIgnoreCase));

        if (string.IsNullOrWhiteSpace(header.Key) || string.IsNullOrWhiteSpace(header.Value))
            return Task.FromResult<HttpResponseMessage?>(null);

        var response = new HttpResponseMessage(HttpStatusCode.OK)
        {
            Content = new StringContent(string.Empty)
        };
        response.Headers.Add(ChallengeHeader, header.Value);
        return Task.FromResult<HttpResponseMessage?>(response);
    }

    [Webhook(
        "On handshake event",
        typeof(HandshakeModeHandler),
        Description = "Completes a webhook handshake, then receives events asynchronously.")]
    public Task<WebhookResponse<TestResponse>> OnHandshakeEvent(WebhookRequest request)
    {
        return Task.FromResult(new WebhookResponse<TestResponse>
        {
            Result = new TestResponse
            {
                TestString = "handshake-event",
                TestDate = DateTime.Now.Date.AddHours(12),
            }
        });
    }
}

Automatic subscription and unsubscription

To define automatic subscription and unsubscription to webhooks you can implement an instance of IWebhookEventHandler and attach it to the webhook as the second argument (see the example above typeof(ArticlePublishedHandler)).

The webhook event handler has two methods: SubscribeAsync and UnsubscribeAsync. There are triggered when a bird is published and unpublished/deleted respectively. Both should implement the API calls that create/delete the webhooks.

An example implementation from the Zendesk app is shown below:

public class BaseWebhookHandler : BaseInvocable, IWebhookEventHandler
{
  private IEnumerable<AuthenticationCredentialsProvider> Creds => InvocationContext.AuthenticationCredentialsProviders;

  private string SubscriptionEvent;
  private ZendeskClient Client { get; }

  public BaseWebhookHandler(InvocationContext invocationContext, string subEvent) : base(invocationContext)
  {
    SubscriptionEvent = subEvent;
    Client = new ZendeskClient(invocationContext);
  }

  public async Task SubscribeAsync(IEnumerable<AuthenticationCredentialsProvider> authenticationCredentialsProvider, Dictionary<string, string> values)
  {
    var request = new ZendeskRequest($"/api/v2/webhooks", Method.Post, Creds);
    request.AddNewtonJson(new
    {
      webhook = new
      {
        name = SubscriptionEvent,
        description = "",
        // The values["payloadUrl"] contains the URL that the other application can call when the event occurs
        endpoint = values["payloadUrl"],
        status = "active",
        http_method = "POST",
        request_format = "json",
        subscriptions = new[]
        {
            SubscriptionEvent
        }
      }
    });
    await Client.ExecuteAsync(request);
  }

  public async Task UnsubscribeAsync(IEnumerable<AuthenticationCredentialsProvider> authenticationCredentialsProvider, Dictionary<string, string> values)
  {
    // For Zendesk, first we have to fetch the ID of the webhook we created
    var getRequest = new ZendeskRequest($"/api/v2/webhooks?filter[name_contains]={SubscriptionEvent}", Method.Get, Creds);
    var webhooks = await Client.GetAsync<WebhooksListResponse>(getRequest);
    var webhookId = webhooks.Webhooks.First().Id;

    // Then we delete the webhook
    var deleteRequest = new ZendeskRequest($"/api/v2/webhooks/{webhookId}", Method.Delete, Creds);
    await Client.ExecuteAsync(deleteRequest);
  }
}

💡 Tip: you can use the Bird ID from the invocation context to generate unique keys for each subscription if required.

Validating webhook subscriptions

An external system can remove, expire, or otherwise break a webhook subscription after it has been created. To let Blackbird detect this, implement IAsyncValidatableWebhookEventHandler in addition to IWebhookEventHandler on the handler class used by the [Webhook] attribute. Implement ValidateSubscription to check that the subscription and its payload URL are still valid, and return a WebhookSubscriptionValidationResponse.

Blackbird calls this validator for every subscribed Bird every 24 hours. Return IsValid = false with a clear Message when the subscription is no longer working. Blackbird then suspends the Bird and adds a Bird deactivated entry to its log and a notification, both using your message as their description. A valid response leaves the Bird active.

public class SubscriptionDependsWithValidationHandler : BaseInvocable,
    IWebhookEventHandler,
    IAsyncValidatableWebhookEventHandler
{
    private readonly string sendTo;

    public SubscriptionDependsWithValidationHandler(
        InvocationContext invocationContext,
        [WebhookParameter(true)] SubscriptionDependsInput input)
        : base(invocationContext)
    {
        sendTo = input.SendTo;
    }

    public async Task SubscribeAsync(
        IEnumerable<AuthenticationCredentialsProvider> authenticationCredentialsProvider,
        Dictionary<string, string> values)
    {
        var result = await PostAsync(new { subscription = true, payloadUrl = values["payloadUrl"] });
        if (!result.IsSuccessStatusCode)
            throw new ArgumentException("The external service rejected the webhook subscription.");
    }

    public Task UnsubscribeAsync(
        IEnumerable<AuthenticationCredentialsProvider> authenticationCredentialsProvider,
        Dictionary<string, string> values)
        => PostAsync(new { unsubscription = true });

    public async Task<WebhookSubscriptionValidationResponse> ValidateSubscription(
        IEnumerable<AuthenticationCredentialsProvider> authenticationCredentialsProvider,
        Dictionary<string, string> values)
    {
        if (string.IsNullOrWhiteSpace(sendTo))
            return new() { IsValid = false, Message = "A destination URL is required." };

        try
        {
            // Ping the same endpoint that was used to subscribe.
            var result = await PostAsync(new { validation = true });
            return result.IsSuccessStatusCode
                ? new() { IsValid = true }
                : new() { IsValid = false, Message = "The webhook subscription is no longer valid." };
        }
        catch (Exception exception)
        {
            return new() { IsValid = false, Message = exception.Message };
        }
    }

    private Task<RestResponse> PostAsync(object body)
        => new RestClient().ExecuteAsync(
            new RestRequest(sendTo, Method.Post).AddJsonBody(body));
}

Handling checkpoint edge cases

Events can be created at the top of the bird to act as the trigger. However, they can also be used in the middle of a bird as a checkpoint. A common scenario for a checkpoint would be to wait for a status to be changed to X. Therein lies a problem: what if the status was already changed to X before the subscription to the webhook was created?

In order to deal with this edge case we also allow you to implement IAfterSubscriptionWebhookEventHandler<T> on a Webhook handler class. This interface wants you to implement the OnWebhookSubscribedAsync method. This method is called the moment the subscription is made. You can use this method to already trigger the first event immediatly. In the case of checkpoints, if the event is called the webhook will unsubscribe afterwards, therefore resolving the edge case.

Here is the implementation of this interface taken from the Phrase TMS app:

public class ProjectStatusChangedHandler(
    InvocationContext invocationContext,
    [WebhookParameter] ProjectStatusChangedRequest projectStatusChangedRequest,
    [WebhookParameter] ProjectOptionalRequest projectOptionalRequest)
    : BaseWebhookHandler(invocationContext, SubscriptionEvent), IAfterSubscriptionWebhookEventHandler<ProjectDto>
{
    const string SubscriptionEvent = "PROJECT_STATUS_CHANGED";

    public async Task<AfterSubscriptionEventResponse<ProjectDto>> OnWebhookSubscribedAsync()
    {
        if (projectOptionalRequest.ProjectUId != null && projectStatusChangedRequest.Status != null)
        {
            var client = new PhraseTmsClient(InvocationContext.AuthenticationCredentialsProviders);
            var request = new PhraseTmsRequest($"/api2/v1/projects/{projectOptionalRequest.ProjectUId}", Method.Get,
                InvocationContext.AuthenticationCredentialsProviders);
            var project = await client.ExecuteWithHandling<ProjectDto>(request);

            if(project.Status == projectStatusChangedRequest.Status)
            {
                return new AfterSubscriptionEventResponse<ProjectDto>()
                {
                    Result = project
                };
            }
        }

        return null;
    }
}

💡 Note: this event will only be triggered on subscription if the EXACT conditions are met: a specific project ID was provided and the status of that project is exactly that of the provided status.

Additional webhook inputs

You can use the [WebhookParameter] attribute to add (optional) input values to your webhook event. F.e. if you want to allow your user to specify their event more narrowly.

These input parameters may or may not be used in the actual subscription method. This can happen if your endpoint or the body of the subscription request takes certain extra parameters for the input. If an input parameter is actually used to create the subscription we recommend that you use [WebhookParameter(true)]. This optional boolean value tells Blackbird that the description depends on this input. If this input value is now changed, the bird will automatically resubscribe.

[Webhook("On issue status changed", typeof(IssueUpdatedHandler),
    Description = "This webhook is triggered when issue status is changed.")]
public async Task<WebhookResponse<IssueResponse>> OnIssueStatusChanged(WebhookRequest request,
    [WebhookParameter] ProjectIdentifier project, [WebhookParameter] OptionalStatusInput status, [WebhookParameter] IssueInput issue)
{
    var payload = DeserializePayload(request);
    var statusItem = payload.Changelog.Items.FirstOrDefault(item => item.FieldId == "status");

    if (statusItem is null
        || (project.ProjectKey is not null && !project.ProjectKey.Equals(payload.Issue.Fields.Project.Key))
        || (status.StatusId is not null && payload.Issue.Fields.Status.Id != status.StatusId)
        || (issue.IssueKey is not null && !issue.IssueKey.Equals(payload.Issue.Key)))
        return new WebhookResponse<IssueResponse>
        {
            HttpResponseMessage = new HttpResponseMessage(HttpStatusCode.OK),
            ReceivedWebhookRequestType = WebhookRequestType.Preflight
        };

    var issueResponse = CreateIssueResponse(payload);
    return issueResponse;
}

Multiple events

An event can receive or discover more than one item at a time. This is common for polling events and for webhook providers that send a batch of changes in one notification. Add the [MultipleEvents] attribute to a webhook or polling event when its result is an IEnumerable<T> and each item should start its own Flight.

For a Bird trigger, Blackbird splits the collection into individual event outputs and starts one Flight for each item. An empty collection starts no Flights. This gives users the same one-item-per-Flight behaviour regardless of whether an App uses webhooks, internal polling, or a polling event.

For a polling event marked [MultipleEvents], use FlyBird to suppress Flights even when the result contains items. Set FlyBird to false when the items should update memory but must not trigger the Bird.

💡 Note: add defensive limits or batching in your App when a source can return a large collection. Avoid returning more than 100 items at once, as [MultipleEvents] would start a Flight for every item.

For a checkpoint, [MultipleEvents] does not split the result into Flights. The checkpoint receives the complete collection as its usual array output, which can be used in a loop or passed to a later action.

Apply the attribute alongside [Webhook] or [PollingEvent]; the output type must be a collection. This polling example returns three or more items and starts a separate Flight for each one:

[PollingEventList]
public class MultipleEventsPollingList : BaseInvocable
{
    private const int DefaultItemsCount = 3;

    public MultipleEventsPollingList(InvocationContext invocationContext)
        : base(invocationContext)
    {
    }

    [PollingEvent(
        "On multiple items polled",
        "Returns each item as a separate Flight."),
     MultipleEvents] // <-- !!
    public Task<PollingEventResponse<MultipleEventsPollingMemory, List<MultipleEventItem>>> OnMultipleItemsPolled(
        PollingEventRequest<MultipleEventsPollingMemory> request,
        [PollingEventParameter] MultipleEventsPollingRequest input)
    {
        var itemsCount = input.ItemsCount ?? DefaultItemsCount;
        var items = Enumerable.Range(1, itemsCount)
            .Select(index => new MultipleEventItem
            {
                Id = $"{DateTime.UtcNow:yyyyMMddHHmmssfff}-{index}",
                Text = $"Item {index} of {itemsCount}",
                Index = index
            })
            .ToList();

        return Task.FromResult(new PollingEventResponse<MultipleEventsPollingMemory, List<MultipleEventItem>>
        {
            FlyBird = items.Any(),
            Memory = new MultipleEventsPollingMemory
            {
                TotalPolls = (request.Memory?.TotalPolls ?? 0) + 1
            },
            Result = items
        });
    }
}

The same attribute works with a webhook event:

[Webhook("On items changed", typeof(ItemsChangedHandler)), MultipleEvents]
public Task<WebhookResponse<List<ChangedItem>>> OnItemsChanged(WebhookRequest request)
    => Task.FromResult(new WebhookResponse<List<ChangedItem>>
    {
        Result = DeserializeChangedItems(request)
    });

For Blueprinted Apps, no separate Blueprint configuration is required: after updating to an SDK version that supports [MultipleEvents], the event is available in the single Blueprint variant.

Callbacks

Blackbird can also handle applications that work with callbacks instead of webhooks. Typically these URLs have to be manually configured. Implementation of this is quite simple and it works exactly the same as webhooks. The only difference is that if you don’t define a IWebhookEventHandler in the webhook attribute, Blackbird will consider it a callback. In this case Blackbird will provide the user with a URL in the UI when they publish their bird.

The following method has no webhook handler (compare this to the webhooks defined above!)

[Webhook("On callback received", Description = "On callback received")]
public Task<WebhookResponse<CallbackPayload>> OnCallbackReceived(WebhookRequest webhookRequest)
    => HandlerWebhook<CallbackPayload>(webhookRequest);

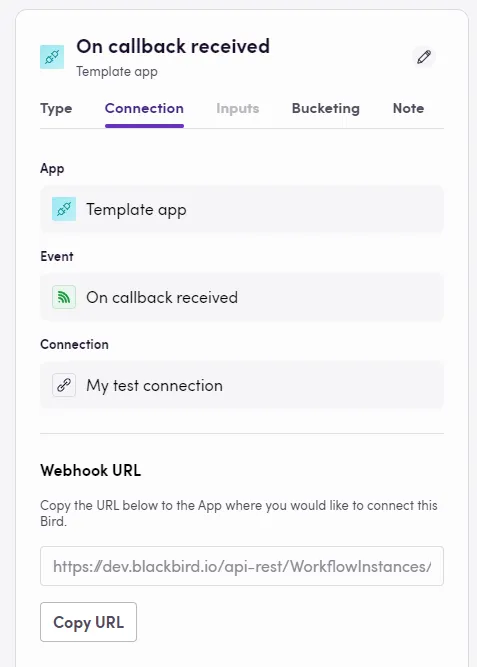

This translates to:

Tip: one can use the callback functionality to create “callable” birds as if Blackbird had its own API.

💡 Note: If you create different birds with the same event and the same connection, then all of these birds will have the same URL. Blackbird has the assumption that it is still the same event that is being triggered and this allows us to optimize internally.

💡 Note: If you suspend a bird, or if you change the event and republish the bird, the URL will change and would have to be reconfigured where the URL is applied.

Because callbacks require quite a bit of developer skill to use, we recommend that you use polling instead of callbacks whenever you’re developing apps that are intended for a broad audience.

Polling

Besides webhooks and callbacks, Blackbird’s core can also take care of different polling scenarios. Instead of implementing a WebhookList with Webhook attributed methods, you can implement a PollingEventList with PollingEvent attributed methods.

[PollingEvent("On polled event", "This is triggered periodically, depending on the user's prefered input.")]
public async Task<PollingEventResponse<Memory, PollingResponse>> MyPollingEvent(PollingEventRequest<Memory> request,
    [PollingEventParameter][Display("Some extra input")] string input)
{
  // [... implementation]
}

A polling event always takes a PollingEventRequest<T> as its first parameter (where T is a memory implementation). It can be followed with any number of PollingEventParameter attributed arguments that work similar to actions and webhooks. The return type of this method should always be of PollingEventResponse<T, U> where T is the memory implementation and U is the response that will be send as the output of the event in the bird.

A possible implementation of PollingEventResponse<T, U> can look like this:

  return new()
  {
      FlyBird = newBerries.Count() > 0, // if FlyBird is set to true, the polling will trigger an event (a flight is created or a checkpoint is passed)
      Memory = new()
      {
          AllBerries = response.Results // Update the memory
      },
      Result = new()
      {
          NewBerries = newBerries, // The content that will be sent to event when triggered in the bird
      }
  };

When a polling event is ‘activated’ (either by publishing a bird or when a flight arrives at a polling checkpoints) the polling event method will be called. If the returned object indicates that the event should be triggered FlyBird should be set to true. The Result will be the values that are passed to the bird.

While active, the polling event will be periodically called. This period is configurable by the user in the bird editor.

The memory implementation can be any class the user desires. This way, you can store any data into memory by setting it in the return value. When the polling event is called again, the memory can be retrieved from the PollingEventRequest<T>. With this mechanism, the developer can choose to implement e.g. a timestamp to indicate when the last poll was in order to filter a query for new items, store existing items in an array and compare it to new items, or store a certain property in a field and compare it to a current property to see if this property has changed.

A full example implementation:

[PollingEvent("On polled event", "This is triggered periodically, depending on the user's prefered input.")]
public async Task<PollingEventResponse<Memory, PollingResponse>> OnProjectCreated(PollingEventRequest<Memory> request,
    [PollingEventParameter][Display("Project status")] string status)
{
    var berriesRequest = new AppRestRequest(ApiEndpoints.Berry, Method.Get, Creds);
    var response = await Client.ExecuteWithHandling<ListResponse<Berry>>(berriesRequest);

    // If the memory is null, this means that the bird was only just published. We should therefore establish the base case and not fly the bird.
    if (request.Memory is null)
    {
        return new()
        {
            FlyBird = false,
            Memory = new()
            {
                AllBerries = response.Results
            }
        };
    }
    // Note: if your event has event parameters then you probably want to structure your logic differently in order to handle cases for checkpoints.

    // Check if there are any new berries since the last poll
    var newBerries = response.Results.Where(x => !request.Memory.AllBerries.Select(y => y.Id).Contains(x.Id));

    return new()
    {
        FlyBird = newBerries.Count() > 0, // Only fly the bird if there are new berries
        Memory = new()
        {
            AllBerries = response.Results // Update the memory
        },
        Result = new()
        {
            NewBerries = newBerries, // The content that will be sent to event when triggered in the bird
        }
    };
}

💡 Note: you can know if the polling event is on its first call if the memory is null.

💡 Note: polling events are always called immediatly when activated. You can use this fact to create a baseline memory for future comparison, or to immediatly trigger a flight (or checkpoint continuance) if all conditions are already met.
